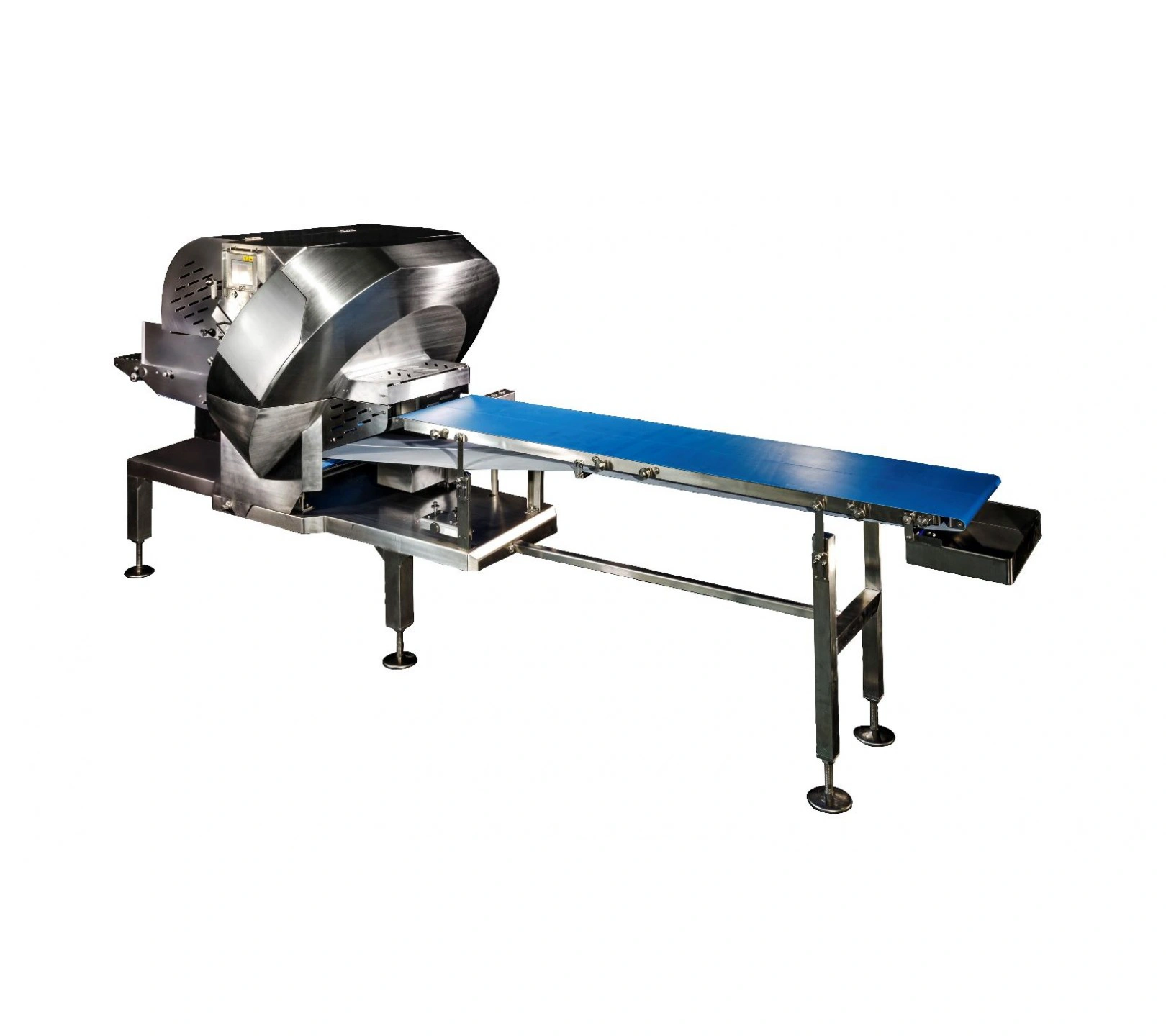

南常高速自動鮮肉切片機
High Speed Auto Fresh Meat Slicer

型號 Model : NUS-340III

品牌 Brand : 南常 nantsune

來源地 Origin : 日本 Japan

機器重量 Machine Weight : 600kg

電壓 Voltage : 380/3/50

體積 Dimensions : L1219 x W3890 x H1515mm

功率 Power Consumption : 2.85kW

切片能力 Slicing Capacity : 320 pieces/min

切片厚度 Slice Thickness : (0.1)~40mm *30mm when face plate is used

切片尺寸 Sliceable Dimensions : L330 x W185 x H710mm

適合切片的溫度 Slice Suitable Temperature : -1 to +4℃

自備氣泵 Self-distribution Air Supply : 0.6MPa

管子外徑Tube Outer Diameter:8mm

貨號: NUS-340III 分類: , 標籤: , , ,

描述


NUS-340III 南常高速自動鮮肉切片機優點 :

實現超過99%的產量

●對肉盒周圍的結構進行了修改,減少了肉屑的產生。實現了超過99%的產量。

產量% =(原料總重量 – 肉屑重量)/ 原料總重量


進一步增強切片的條件和對齊

●圓形刀片上新增了剝皮機構。圓形刀片的旋轉對切片產生的影響較小,減少了對生肉的損傷和拉伸,即使在薄片設置下也可以實現漂亮的切片。切片的準確性和美觀度得到了進一步提高。

適用於廣泛的產品

●Jupiter最適合處理切削肉和五花肉片,以及薄切產品和燒烤肉製品。

適用於托盤裝盤產品的最佳尺寸調整功能

●輸入要裝盤的托盤尺寸,切片的肉將相應地排出。操作員只需簡單地舀取並放入托盤中,即可製作出外觀良好的產品。

更容易更精確地磨圓刀片

●重新設計了附加的研磨裝置結構,以確保與砂輪的持續接觸。這使得拋光和精細修整對每個人來說都變得容易和高度精確。

間歇操作中的加工能力提升

●間歇操作期間快速推進傳送帶供料的快進功能。減少了切片等待時間,提高了加工能力。

*在III切片速度為120片/分鐘,間歇切片5次,間距為50mm的情況下

傳統機器:32片/分鐘 ⇒ Jupiter III:87片/分鐘(約快2.7倍)

NUS-340III High Speed Auto Fresh Meat Slicer Features :

A YIELD OF OVER 99% IS ACHIEVED

●The structure around the meat box has been modified to reduce the generation of meat scraps. A yield of over 99% was achieved.

*Yield% = (Ingredient total weight – weight of meat scraps) / Ingredient total weight

FURTHER ENHANCING THE CONDITION AND ALIGNMENT OF THE SLICE

●Newly developed peeling mechanism on the circular blade. The rotation of the circular blade has less impact on slicing and reduces damage and elongation to the raw meat, enabling beautiful slicing even at thin slicing settings. The accuracy and beauty of shingles has been further improved.

COMPATIBLE WITH A WIDE RANGE OF ITEMS

●Jupiter is best in handling shaved meat and pork belly slices, as well as thinly sliced products and barbecued meat products.

OPTIMAL SIZE ADJUSTMENT FUNCTION FOR TRAY-DISHING PRODUCTS

●Enter the size of the tray to be dished, and the meat in shingles are ejected accordingly. The operator just need to simply scoop and dish in the tray to create good-looking products.

EASIER AND MORE PRECISE GRINDING OF ROUND BLADES

●The structure of the attached grinding device was redesigned to ensure constant contact with the grinding wheel. This makes polishing and finishing easy and highly precise for everyone.

IMPROVED PROCESSING CAPACITY IN INTERMITTENT OPERATION

●Fast-forwarding function for quick conveyor feed during intermittent operation.The slice waiting time has been minimized, and processing capacity has been increased.

*In the case of slicing speed of 120 pcs/minute, 5 intermittent slices, 50mm spacing

Conventional machine: 32 pcs/min ⇒ Jupiter III: 87 pcs/min (approx. 2.7 times faster)

額外資訊

重量 600 公斤
尺寸 121.9 × 389 × 151.5 公分
品牌 Brand

原產地 Origin
