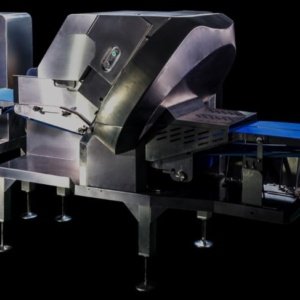

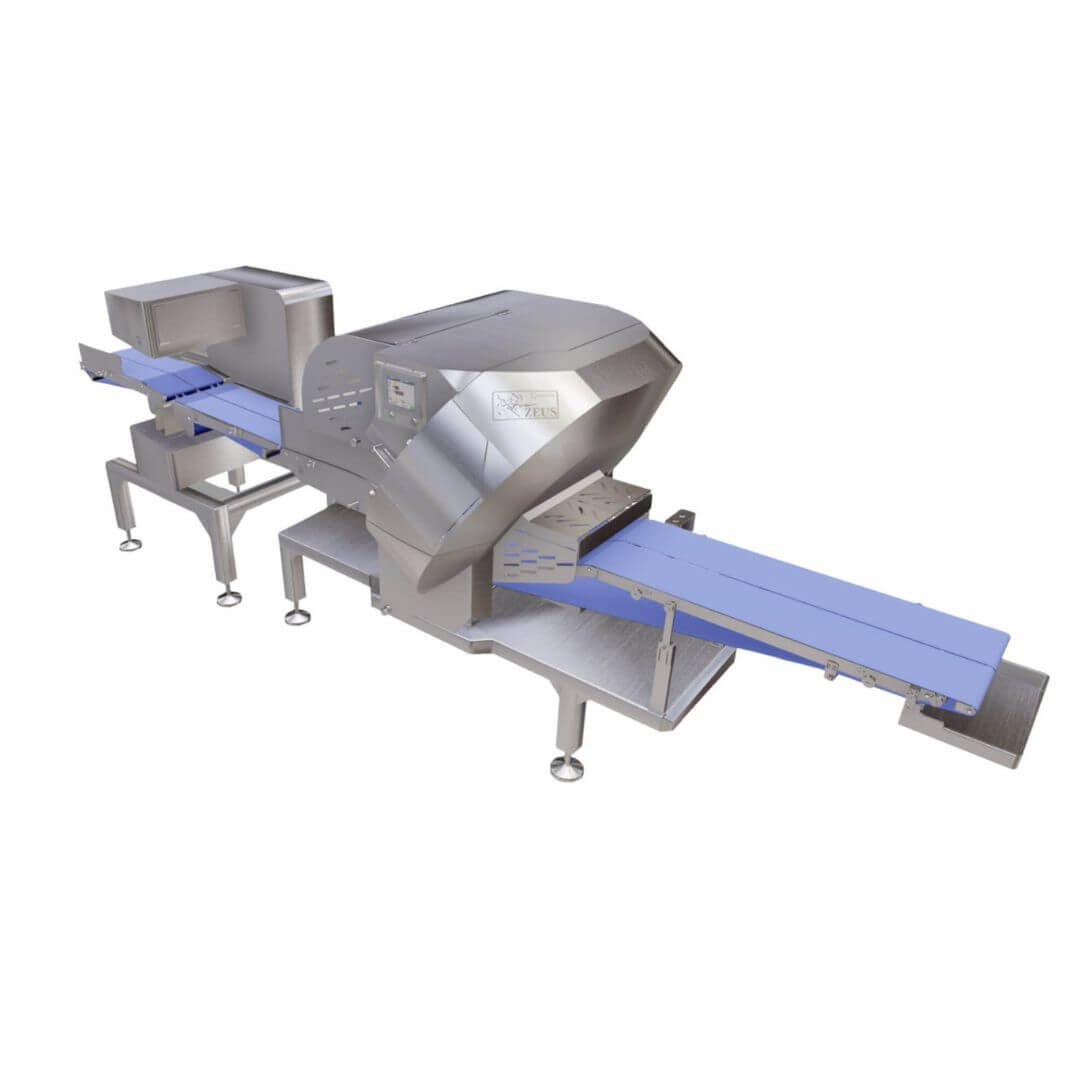

日本南常3D包裝定量切片機
3D Pack Fixed Weight Slicer
(2 Models)

從原料輸入到運輸過程中,固定數量包裝的肉片生產可以實現自動化。

2 款型號 : NTDPS-340 | NTDPD-340

描述

按此下載 Brochure

南常3D包裝定量切片機優點 :

可選擇定厚、定量、包裝定量

● 通可以選擇三種模式:”固定厚度模式”、”固定重量模式”和”固定包裝重量模式”。

重量精度±5%

● 引入了 Libra 系列中確立的技術,例如通過 3D 非接觸測量進行重量測量和形狀識別。重量精度±5%。

(盒裝定量時,每包 5片或以上)

只需將切片放在託盤上就可以製作出精美的產品,而無需調整重量或排列,這對於製作包裝產品來說是必不可少的。


成品率超過 99%

● 通過改變肉盒周圍的結構,抑制肉屑的產生,成品率超過99%。

更漂亮的切片的狀況和排列

● 圓刀片配備了新開發的剝離機構,防止肉片拉伸,傳送帶上的鱗片排列更加美觀,提高了服務產品的品質。

兩種系列,單輸和雙輸

● 有兩種系列,一種是輸送機寬度為340mm x 1的單輸機,另一種是輸送機寬度為160mm x 2的雙輸機。由於雙輸送機是單獨控制的,因此可以保證兩者各自的數量,甚至可以一次切片不同類型和形狀的原料。 也可分別對左右兩側進行設定,實現新產品的製作和同時切薄片和厚片等操作。

可以很容易地與我們的自動包裝機「CM-230 SCORPION」連接。

● 與自動包裝機「CM-230 SCORPION」連接後,裝盒工作也可以實現自動化。該機器還可以與包裝和貼標機器相連接,這樣,從原料輸入到運輸過程中,固定數量包裝的肉片生產可以實現自動化。

3D Pack Fixed Weight Slicer Features :

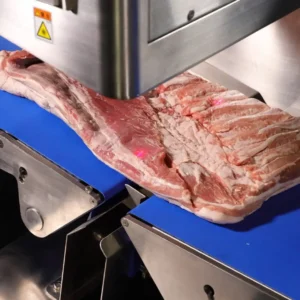

● High-speed fixed weight slicing of pork belly, loin, and other thinly sliced meats!

● Supports fixed thickness, fixed weight, and pack fixed weight.

SELECTABLE BETWEEN FIXED THICKNESS, FIXED WEIGHT, AND PACK FIXED WEIGHT

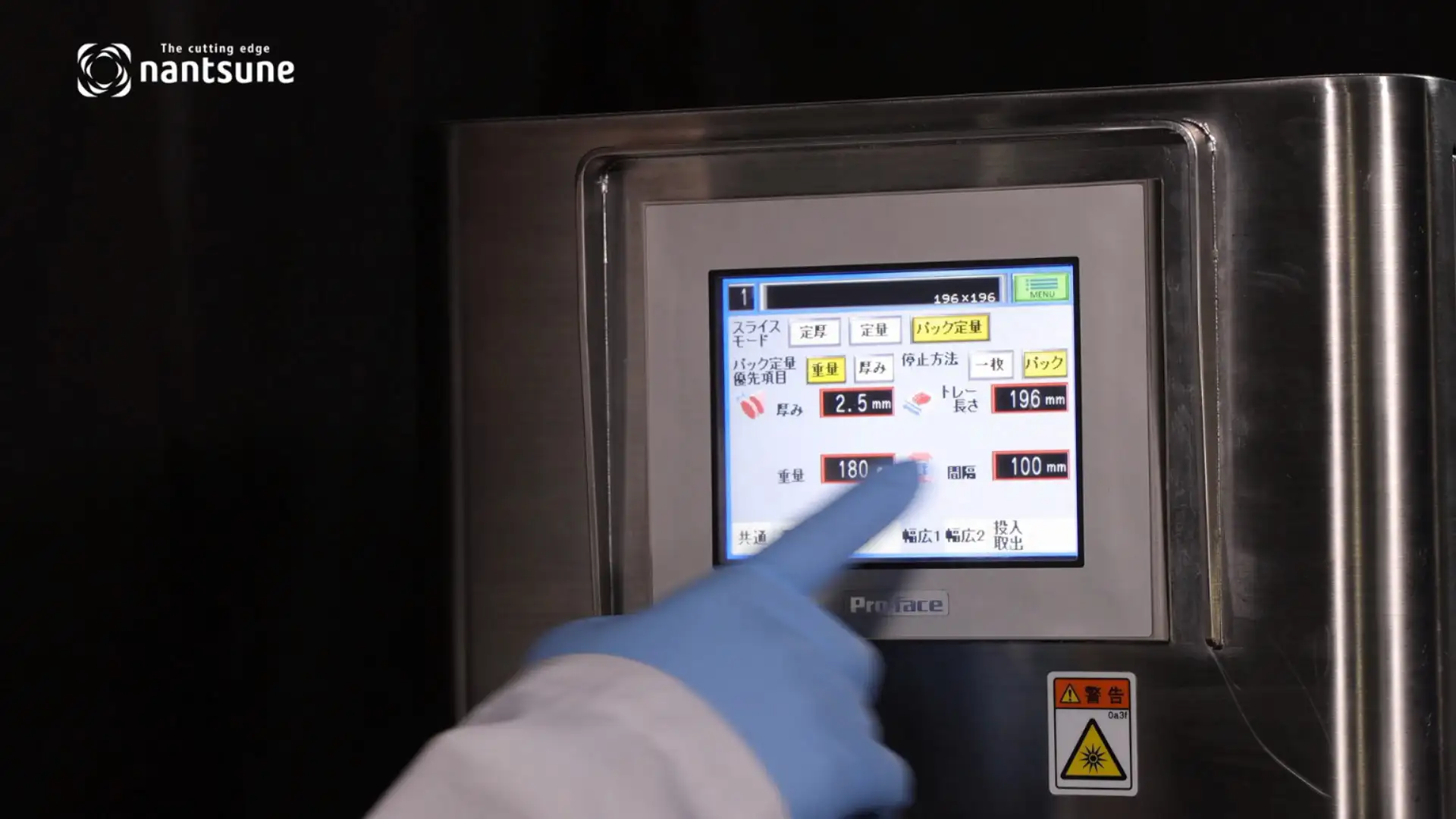

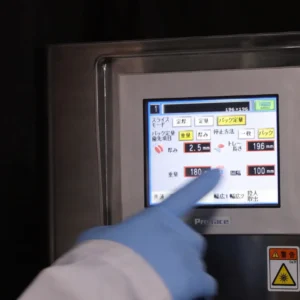

● Three modes are selectable: “fixed thickness mode” where the thickness of each slice is constant, “fixed weight mode” where the weight of each slice is constant, and “pack fixed weight mode” where each pack’s weight is constant.

WEIGHT ACCURACY ±5%

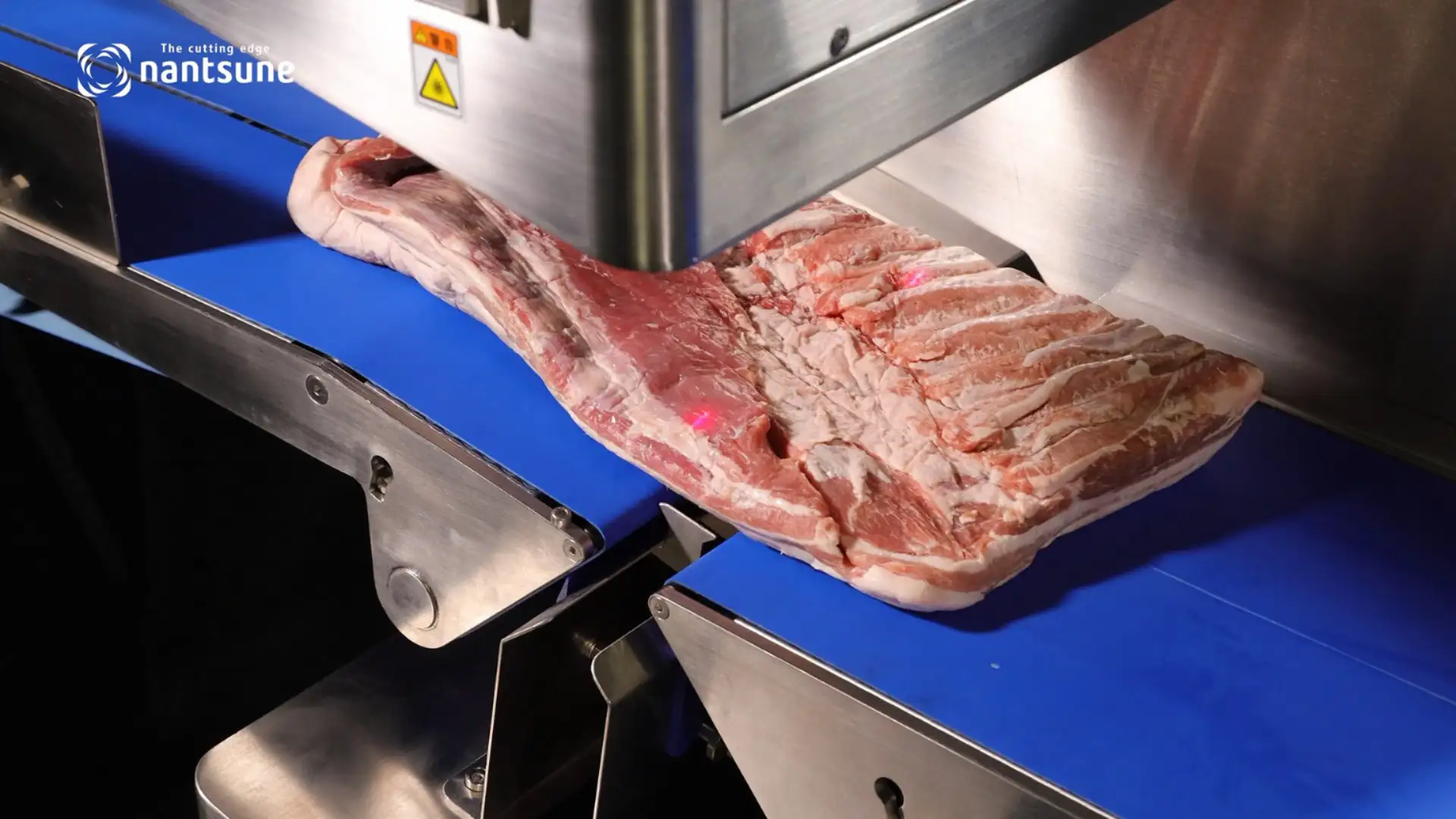

● Introducing technologies established in the Libra series, such as weight measurement and shape recognition by 3D non-contact measurement. With weight accuracy of ±5% (when the number of slices is 5 or more per pack), the pack fixed weight mode allows for the creation of beautiful products simply by placing them on a tray without the need for weight matching or reworking, which is essential in the production of packaged products.

YIELD OF OVER 99% IS ACHIEVED

● The structure around the meat box has been modified to reduce meat scraps and achieve a yield of over 99%.

THE STATE AND ALIGNMENT AFTER SLICING IS EVEN MORE BEAUTIFUL

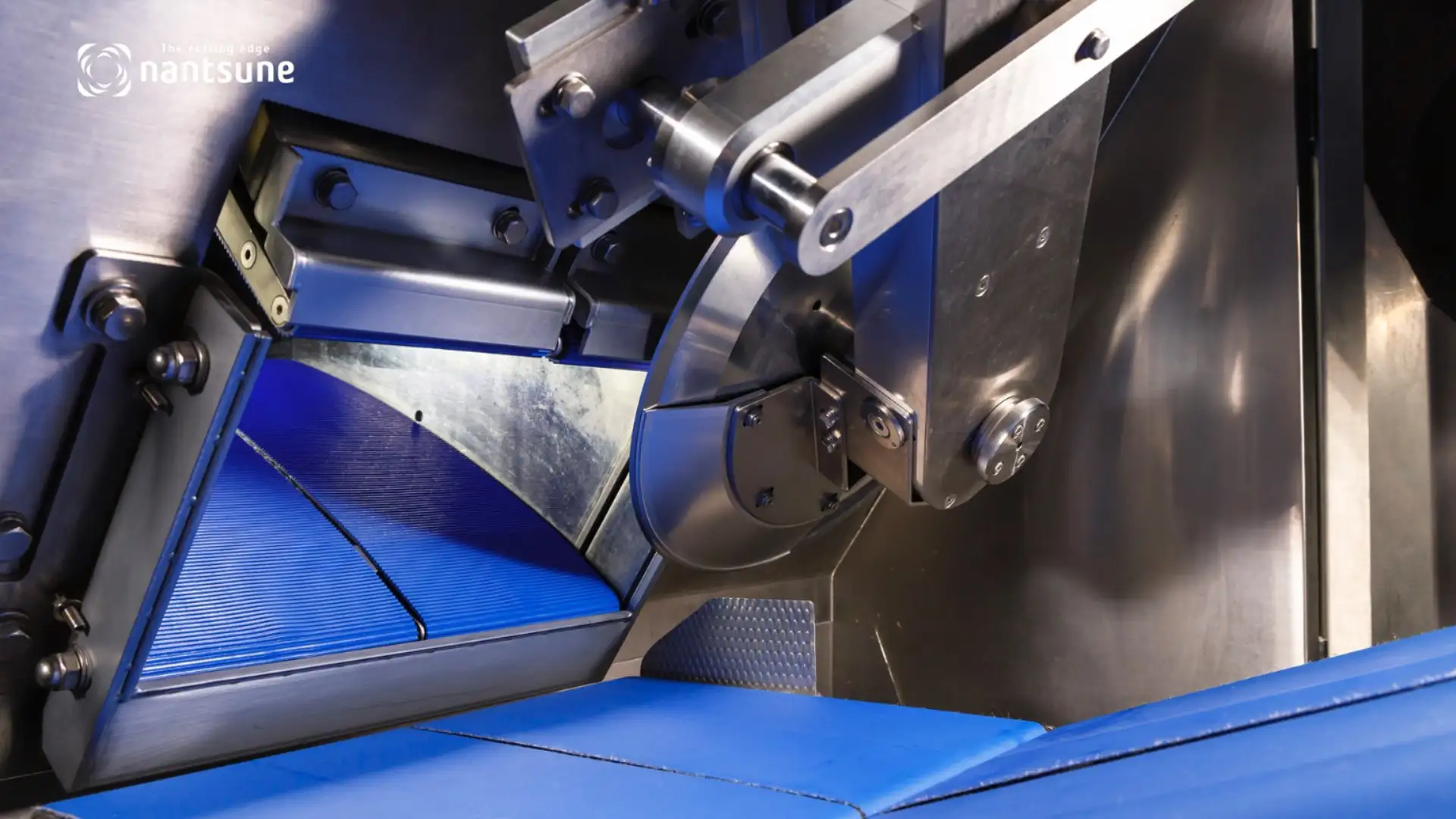

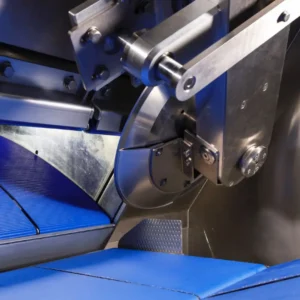

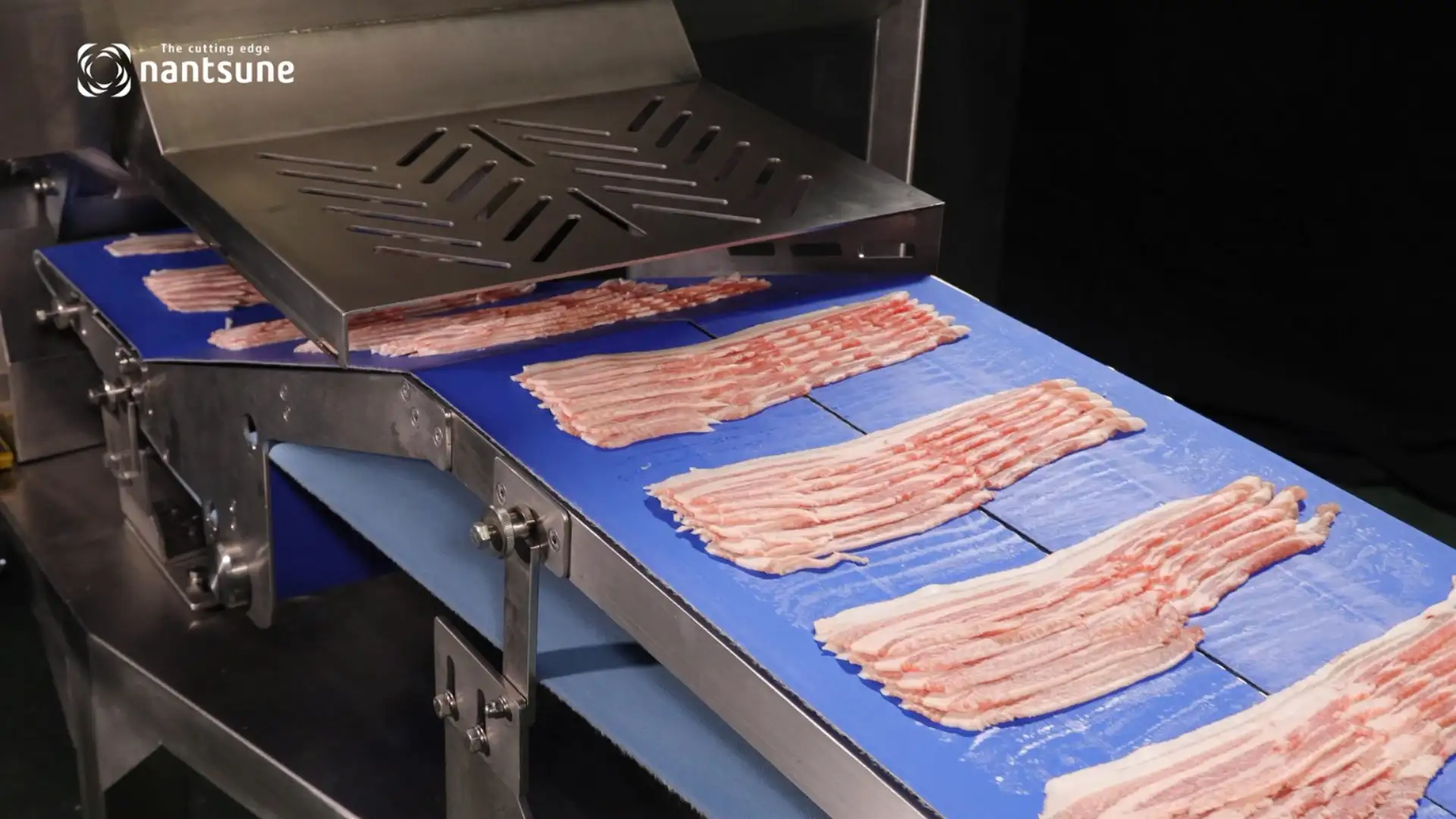

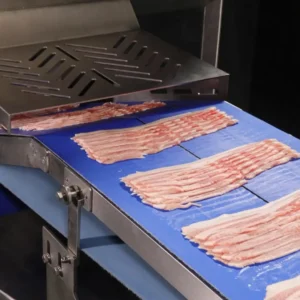

● The newly developed peeling mechanism mounted on the circular blade prevents the sliced meat from stretching and further improves the appearance of the product to be served by laying the meat on the conveyor.

SINGLE AND DUAL LINEUPS

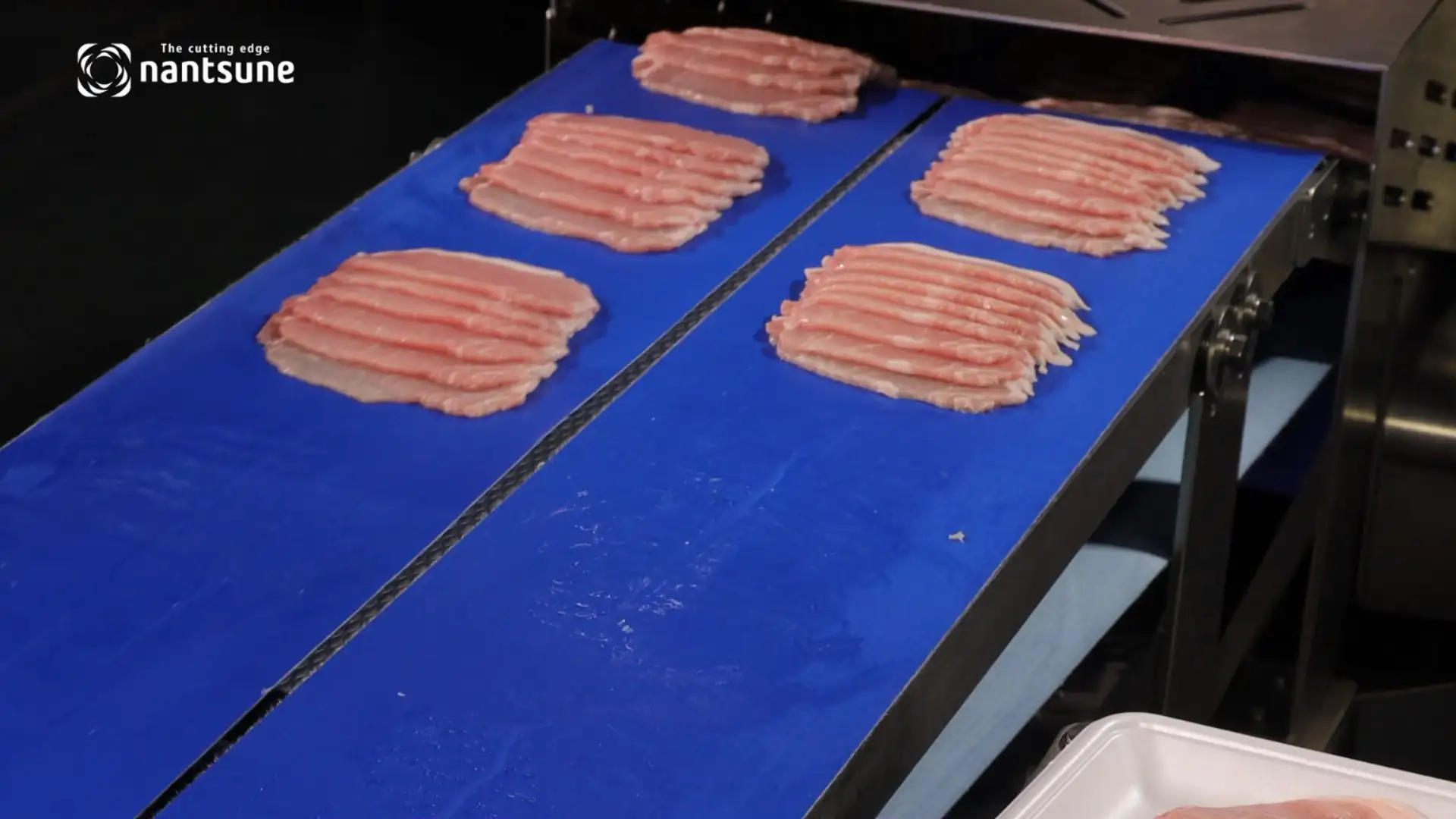

● Two lineups: Single (conveyor with a width of 340 mm x 1) and Dual (conveyor with a width of 160 mm x 2). The dual type has individual conveyor control, which allows for fixed weight slicing of materials of different types and shapes at once. Since the settings can be made individually for the left and right conveyors, new product creation and operations can be realized, such as performing thin and thick slices at the same time.

EASILY CONNECTED WITH OUR AUTOMATIC DISHING ROBOT “SCORPION”.

● Meat dishing operation can be automated by connecting with our product, automatic dishing robot CM-230 SCORPION. Furthermore, since it can be connected to packaging and price labeling machines, it can automate the entire process of making sliced meat packs, from raw material input to shipping.

額外資訊

重量 不提供
尺寸 不提供
品牌 Brand

原產地 Origin

型號 Model

NTDPS-340, NTDPD-340
