南常自動凍肉切片機
RHEAIII Auto Frozen Meat Slicer

型號 Model : NF-410III

品牌 Brand: 南常 nantsune

來源地 Origin:日本 Japan

類型 Type : 座地 Floor Type

溫度 Temperature : -6℃~-2℃

切片厚度 Slice Thickness : 0 – 30 mm

肉盆來回速度 Speed : 35-70 times/min

最大切肉尺寸 Max Cutting Size :

L460mm×W410×H220mm(使用配重時)
(有效寬度調整尺寸:最小65mm)

馬達 Motor : 1.45kW

電壓 Voltage : 380/3/50/20A

機器重量 Machine Wight : 320kg

最大肉載量 Max Loading Capacity : 23kg

總體積 Dimension:L777 x W1193 x H1526mm



描述



按此下載 NF-410III Brochure

NF-410III 南常自動凍肉切片機優點 :

易於清潔和衛生

● 擴展式切割板具有一體化結構,易於清洗,非常衛生。它也防水*,可以抵抗流水。

● *某些區域,如開口處,不允許水濺灑。

● 圓形刀片和肉架周圍區域可以輕鬆拆卸和清洗。

● 清洗時可拆卸的重量裝置可確保更好的衛生。

● 高架機器底下的地板可輕鬆清洗。

對工人安全的考慮

● 在上刀片蓋和外圍蓋上安裝了傳感器。如果刀片不必要地暴露,機器將無法運作,確保安全。

● 標準配備了圓形刀片安全蓋。

改善可用性和工作效率

● 操作已從拉桿開關改為按鈕方式。

● 先前安裝時需要的高度調整已不再需要。

● 上方壓板從棘爪系統改為旋鈕固定系統,能牢牢固定肉塊,切片時不會移位。



 NF-410III Auto Frozen Meat Slicer Features :

Frozen slicer with excellent hygiene, safety and operability.

Easy to clean and hygienic

● The expanded cutting board has an integrated structure, making it easy to clean and very hygienic. It is also waterproof* against running water.

● *Water splashing is not allowed in some areas such as openings.

● The round blade and the area around the meat stand can be easily disassembled and cleaned

● The detachable weight feature during cleaning ensures better hygiene

● The floor under the high floor type machine can be cleaned easily.

Consideration for worker safety

● Sensors are installed on the upper blade cover and the outer perimeter cover. The machine will not operate if the blades are unnecessarily exposed, ensuring safety.

● A round blade safety cover is standard equipped.

Improved usability and work efficiency

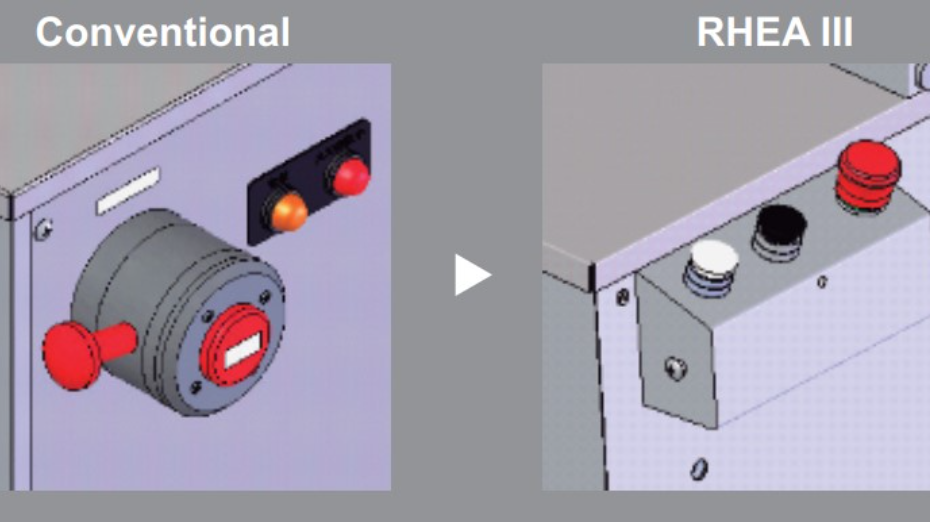

● The operation has been changed from a lever switch to a push button method.

● Previously required height adjustment during installation is no longer necessary.

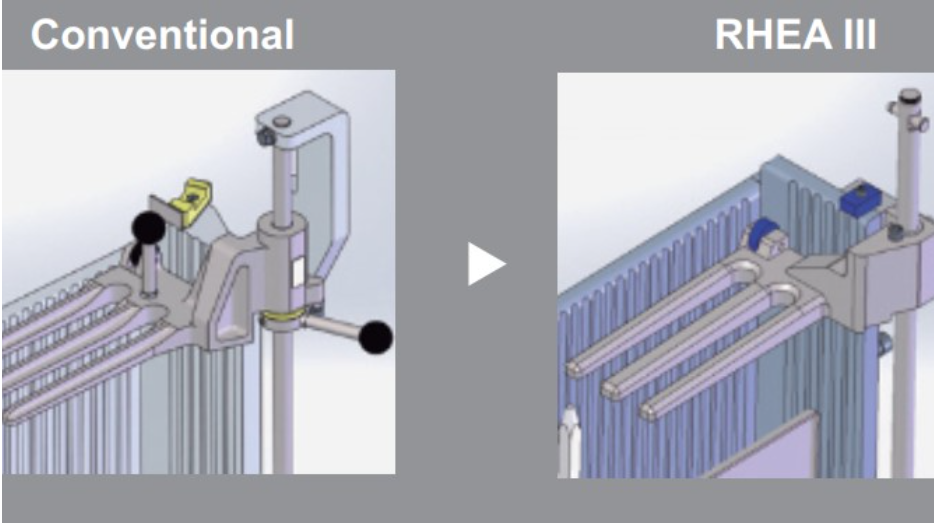

● The upper presser has changed from a ratchet system to a knob fixation system which holds the slab of meat firmly and does not shift during slicing

額外資訊

重量 320 公斤
尺寸 46 × 41 × 22 公分
品牌 Brand

原產地 Origin
