日本南常自動鮮肉切片機

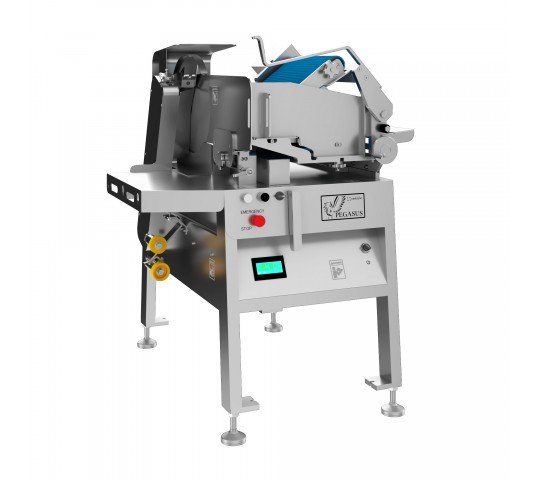

Auto Fresh Meat Slicer

型號 Model : GNS-350

品牌 Brand : 南常 Nantsune

來源地 Origin : 日本 Japan

=重量 Weight : 260kg

電壓 Voltage : 380/3/50

體積 Dimensions : L1158 x W973 x H1301mm

放肉電機功率 Motor For meat feed:0.13kW

肉盒用 For meat box:0.75kw

圓刀 For round blade:0.4kw

額定功率 Rated Power: 0.2kW

切片能力 Slicing Capacity :

40,55,65 pieces/min (3 level control)

切片厚度 Slice thickness : 0 – 20mm

切片尺寸 Slice Dimensions : L630 x W350 x H180mm

切片溫度 Slice Temperature : -1°C to +4°C

*根據肉的厚度、肉質和形狀略有不同

Varies slightly depending on thickness, quality and shape

描述

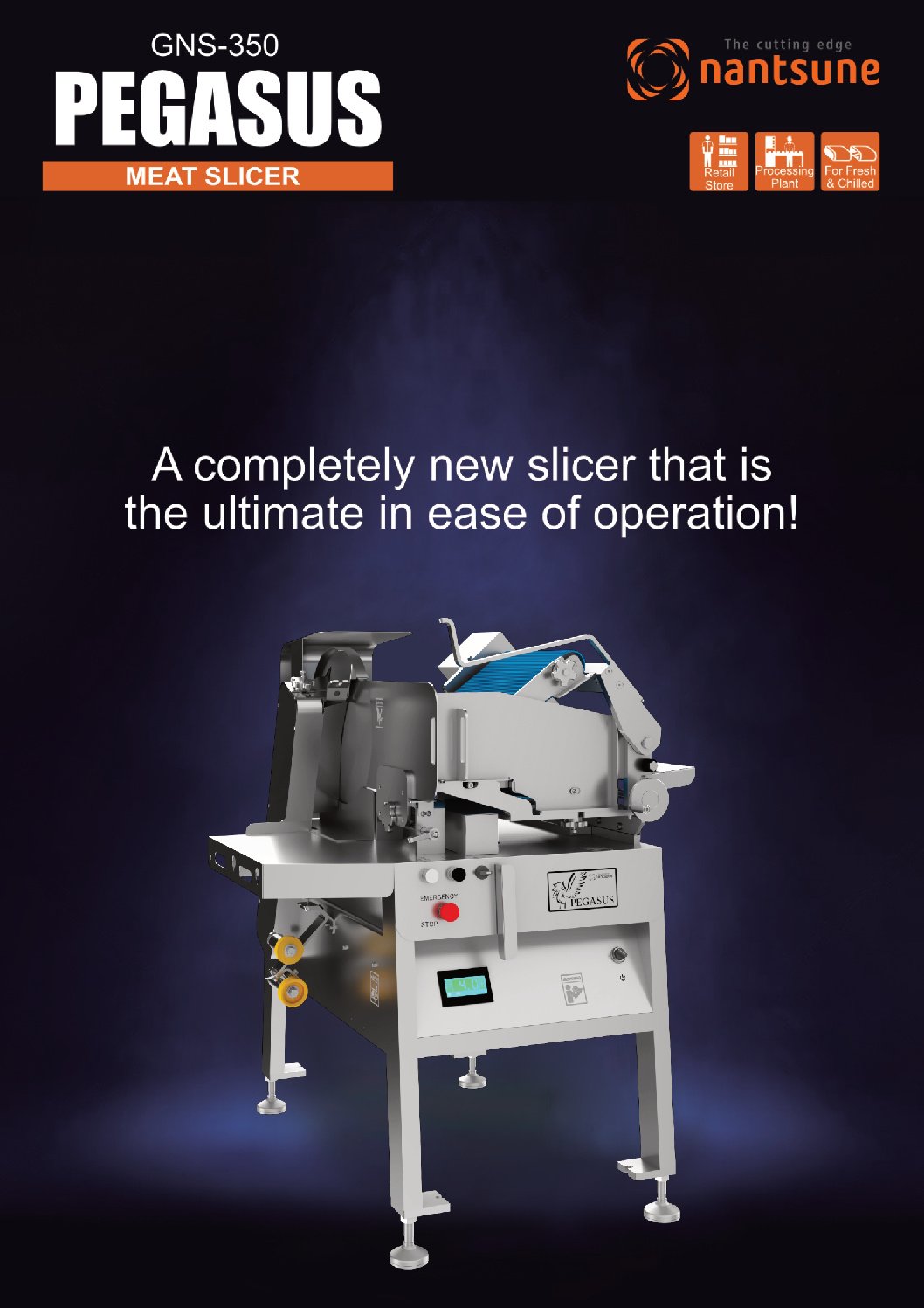

按此下載 GAS- Brochure

GAS-350 南常自動鮮肉切片機優點 :

觸摸面板實現簡單而準確的厚度設置

● 切片的厚度和速度可以在觸摸面板上進行數字設置。現在任何人都可以輕鬆且準確地保持相同的切片厚度。在操作過程中可以更改厚度設置。

採用馬達驅動系統進行肉類進給

● 馬達系統設計使上壓板周圍和肉類進給區域整潔有序。輔助進給也採用馬達化設計,便於操作。


通過採用皮帶系統為上壓板進行更新結構

● 通過提升上壓板,使進給部分可以寬敞打開。可以輕鬆進給大型原料。上壓板採用皮帶系統,減少了拆卸和清潔所需的時間。上下皮帶相同,不會出現安裝錯誤的情況。

進給槽寬度標準規格為350毫米

● 進給寬度採用標準規格為350毫米(傳統為330毫米)。可以直接進給牛肩腰等大型原料。

新配備間歇操作功能和停機時間調整功能

● 配備了間歇操作功能,每次切片指定數量後暫停一段時間。更方便的產品製作。除了調整切片速度外,還可以設定停機時間。根據產品製作內容和技能水平更容易操作。

拆卸和清潔方便

● 重新設計了組件,減輕了重量和零部件的不平均性,並且適合標準水槽(450毫米深度)。主體也具有簡單平整的結構。致力於減少拆卸和清潔所需的時間和工作量。

GAS-350 Auto Fresh Meat Slicer Features :

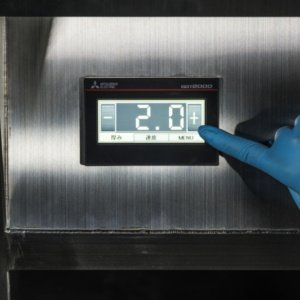

EASY AND ACCURATE THICKNESS SETTING BY TOUCH PANEL

● Slicing thickness and speed can be set digitally on the touch panel. Anyone can now easily and accurately slice the same thickness at all times. Thickness settings can be changed during operation.

A MOTOR DRIVE SYSTEM IS ADOPTED FOR MEAT FEEDING

● The motor system design makes the area around the upper presser and the meat feeding area neat and tidy. The auxiliary feed is also motorized for ease of operation.

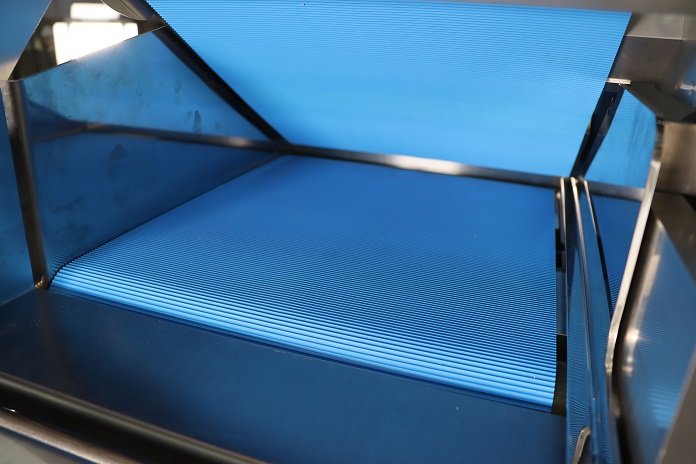

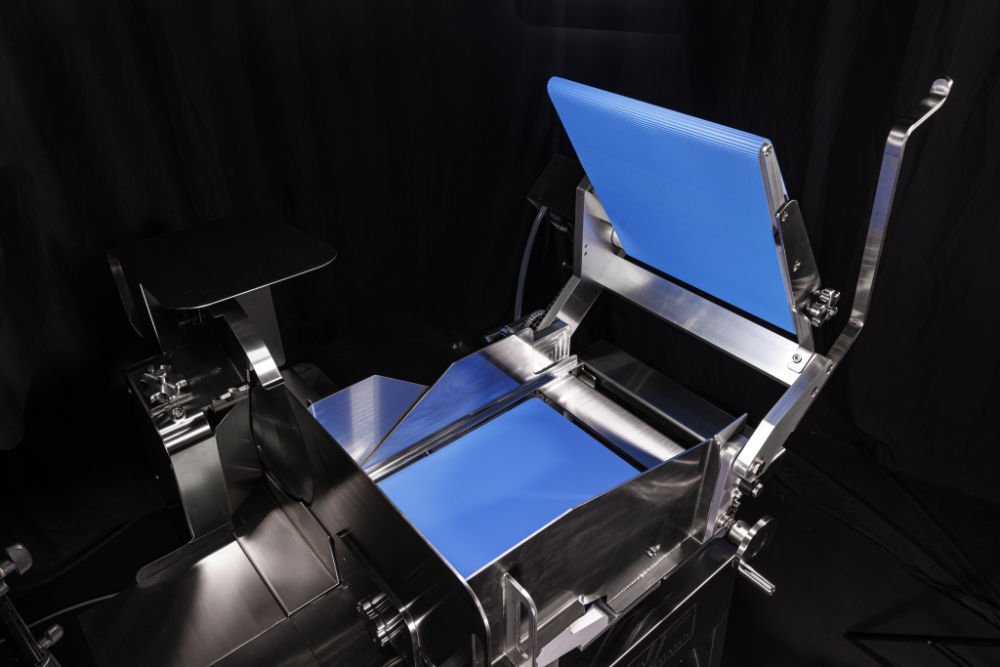

RENEWED STRUCTURE BY ADOPTING A BELT SYSTEM FOR UPPER PRESSER

● A structure in which the feeding part opens wide just by lifting the upper presser.Large raw materials can be fed easily. The use of a belt system for the upper presser reduces the time required for disassembly and cleaning. The upper and lower belts are identical, so there is no chance of installation errors.

THE FEEDING TANK WIDTH IS 350MM AS STANDARD SPECIFICATION

● The width of 350mm (conventionally 330mm) is adopted as the standard specification for the feeding of wide materials. Large raw materials such as beef shoulder loin can be fed directly.

NEWLY EQUIPPED WITH INTERMITTENT OPERATION FUNCTION AND STOPPAGE TIME ADJUSTMENT FUNCTION

● Equipped with an intermittent operation function that pauses the machine for a certain period of time after slicing a specified number of pieces each time. More convenient product creation. In addition to adjusting the slicing speed, the stop time can also be set. It has become easier to operate according to the product creation content and skill level.

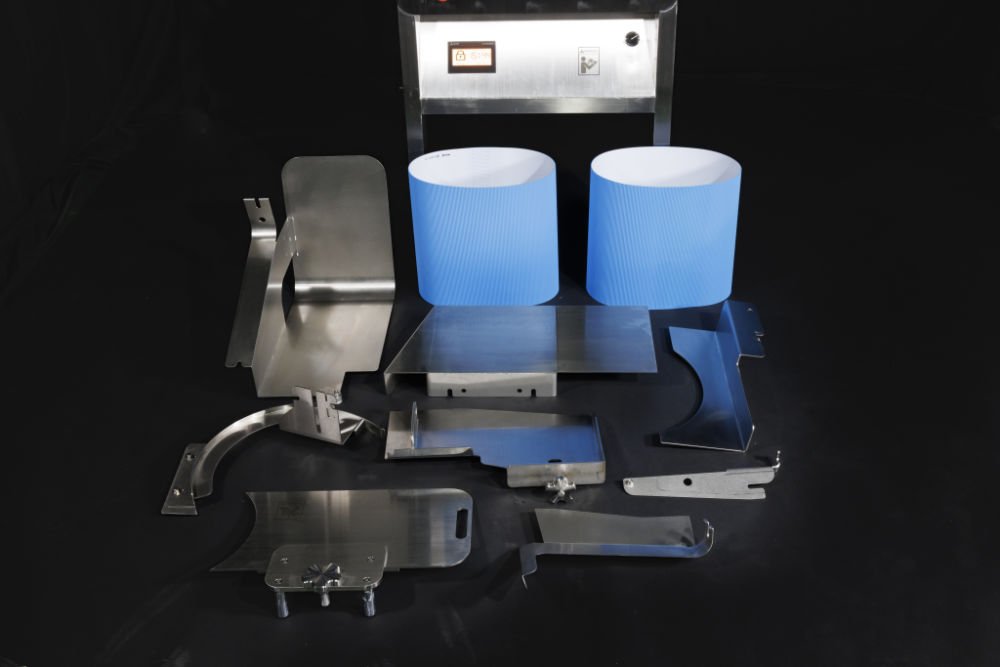

EASY TO DISASSEMBLE AND CLEAN

● Components were redesigned to reduce weight and unevenness of parts, and fit into a standard sink (450mm depth). The main body also has a simple and flat structure. Committed to reducing the time and labor required for disassembly and cleaning.

額外資訊

重量 260 公斤
尺寸 115.8 × 97.3 × 130.1 公分
品牌 Brand

原產地 Origin
